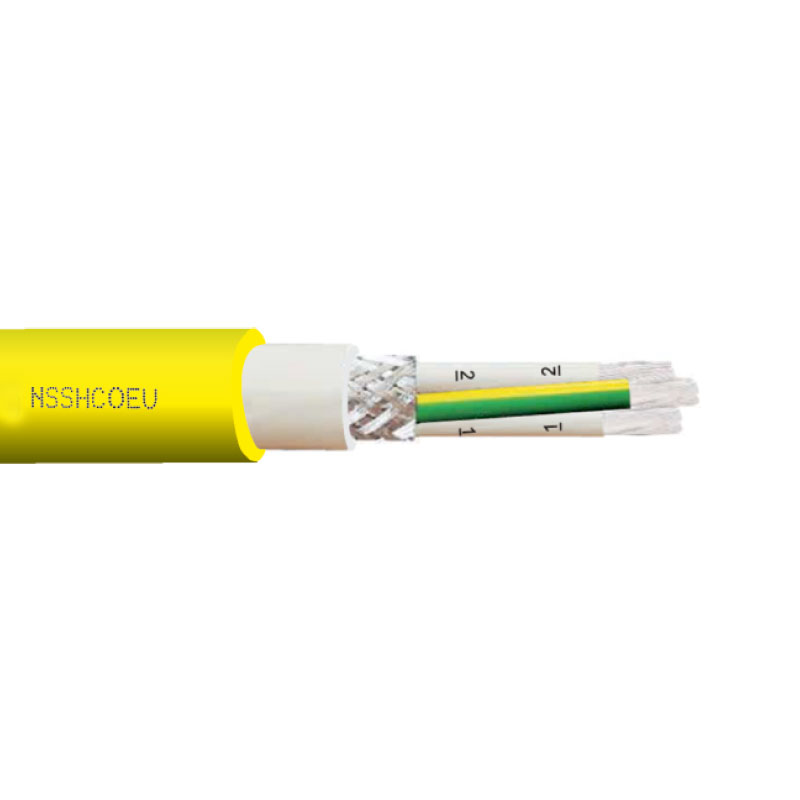

NSSHCOEU cable

NSSHCOEU cable
Product description: NSSHCOEU cable|NSSHCÖEU EPR rubber Cable for installation as motor power supply cables for frequency converters in mining industry. Cables classified according to EN 50575 (CPR).
INQUIRY

NSSHCOEU cable|NSSHCÖEU EPR rubber Cable for installation as motor power supply cables for frequency converters in mining industry. Cables classified according to EN 50575 (CPR).Suitable for laying on material handling equipment, also for continuous slight movements. Can also be used as a connection cable between upper and lower part of excavator, stacker/reclaimer etc,elevator traveling cable.

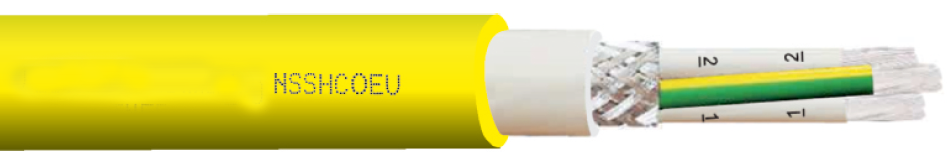

NSSHCOEU cable|NSSHCÖEU EPR rubber Cable Structure

Conductor material: Tinned copper conductor, class 5 acc. to DIN VDE 0295

Insulation:EPR compound 3GI3 acc. to DIN VDE 0207
Screen:Tinned copper braiding
Inner sheath:EPR compound Gm1b acc. to DIN VDE 0207, part 21
Outer sheath:Yellow, PCP compound type: 5GM5
Temperature fixed installation: -40°C / + 80°C
Temperature flexible installation:-25°C / + 80°C
Temperature in service:+ 90°C
Temperature in short circuit: + 250°C
Nominal voltage Uo:0,6kV
Nominal voltage U: 1kV
Testing voltage:3000 V
Maximum operating voltage: A.C. Uo/U = 0,7/1,2 kV
D.C. Uo/U = 0,9/1,8 kV
Tensile strength:15 N/mm2
Torsional stress:+/- 25°/m
Oil resistant:DIN VDE 0473, part 811-2-1 EN/IEC 60811-2-1

Fire resistant:VDE 0482, part 332-1-2 EN/IEC 60332-1-2

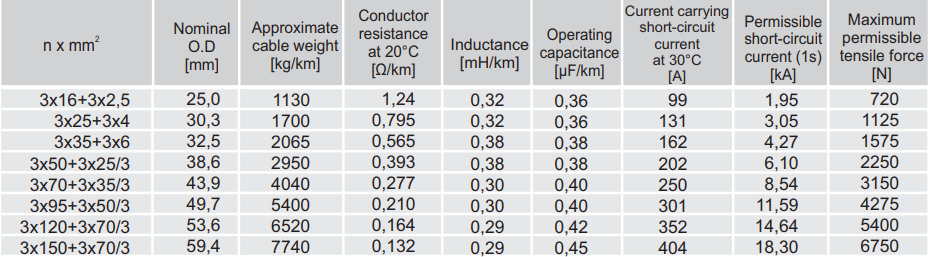

NSSHCOEU cable|NSSHCÖEU EPR rubber Cable parameters
