  • Product description: Flat elevator cable with steel wire tensile, shielding layer, coaxial cable TVVBPG-TV adopts a new type of cold flexible special outer sheath, which can remain soft at a low temperature of -15°C. Due
  • INQUIRY

Flat elevator cable with steel wire tensile, shielding layer, coaxial cable TVVBPG-TV adopts a new type of cold flexible special outer sheath, which can remain soft at a low temperature of -15°C. Due to the weight of the cable and the tension it needs to bear, the cable structure must be specially designed when used in a large-length suspension. It is carried by high-strength aviation galvanized steel wire and contains coaxial cable. If other models are required, it can be customized. It has the characteristics of long service life, stable video transmission model and high definition.Shielded flat elevator cable TVVBP
Application standards: GB 5023.6, IEC 60227-6, En 50214

flat elevator cable

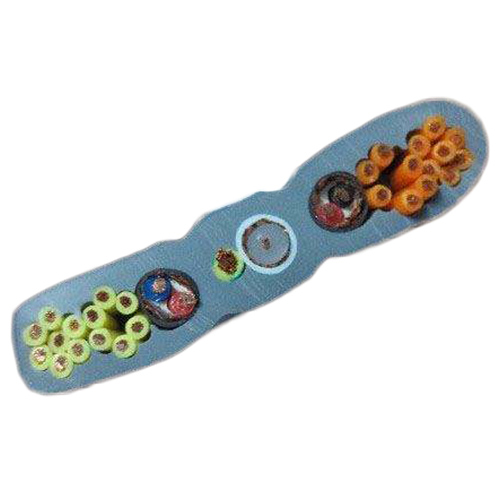

Flat elevator cable with steel wire tensile, shielding layer, coaxial cable TVVBPG-TV structure

Conductor: Multi-strand ultra-fine finely stranded oxygen-free copper wire, in line with VDE0295 CLASS 5 standard
Insulation: special mixed PVC insulation
Color: color representation, in line with GB5023.6 (yellow, white, orange, light green, pink) digital number (no yellow and green grounding wire)
Lining layer: none
Reinforcement: high-strength galvanized aviation steel wire (optional)
Sheath: special cold-resistant PVC sheath, gray (RAL7001) or black (RAL9005)
Elevator flat cable model: TVVBPG-TV
T: The "ladder" of the elevator V: PVC V: PVC sheath
B: Flat cable p: Shielding structure G: Steel wire reinforcement
TV: Video transmission line
When the elevator flat cable is quincunx twisted arrangement
1. The free suspension length is greater than 80m
2. Running speed 4.om/s-10.0m/s
3. Load-bearing components should be added to the cables, which are generally galvanized soft steel wire ropes
For example, when the Flat elevator cable with steel wire tensile, shielding layer, coaxial cable TVVBPG-TV is used as follows:
When the elevator flat cables are arranged in a straight line
1. The free use length is greater than 35m
2. Running speed is greater than 1.6m/s
Consideration should be given to adding load-bearing components to the cable. The load-bearing components are generally galvanized soft steel wire rope or fiber rope such as spinning yarn.
