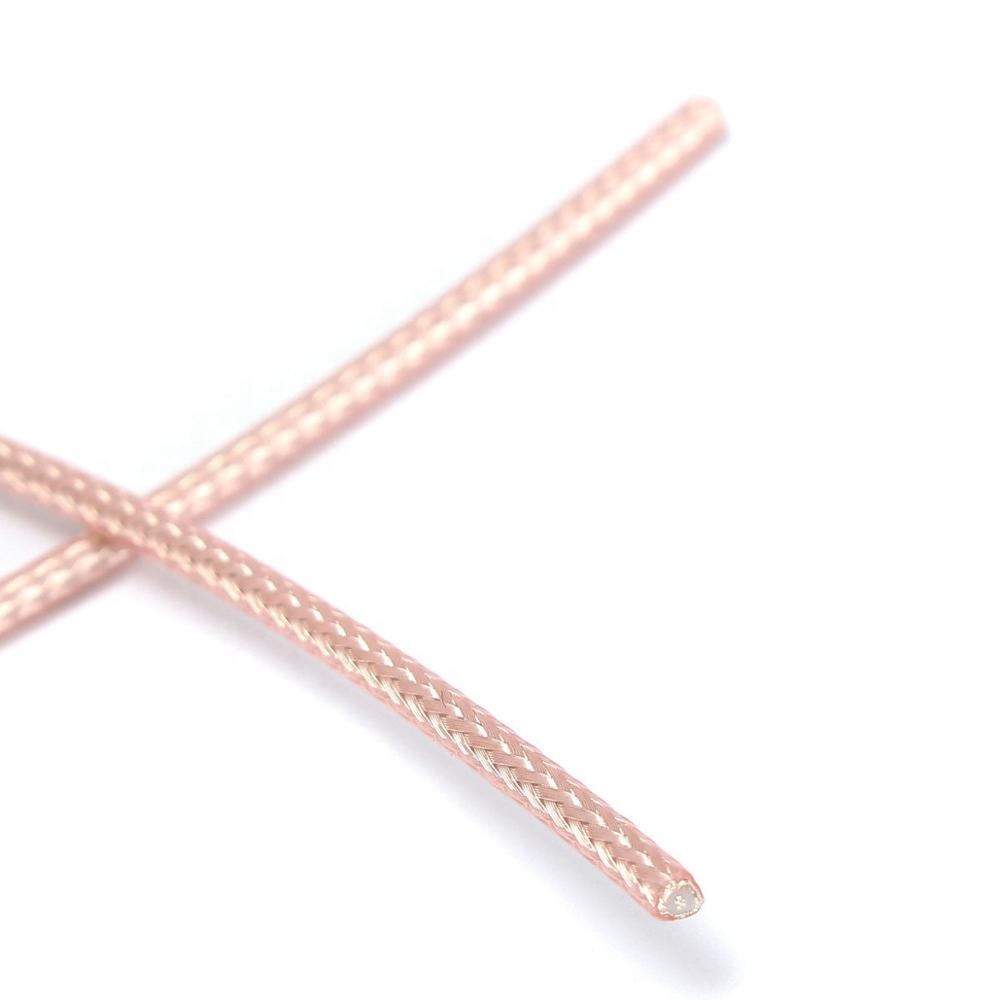

Silver Copper PTFE FEP Teflon RG316 Coaxial Cable

RG316 Coaxial Cable
Product description: Silver Copper PTFE FEP Teflon RG316 Coaxial Cable has good anti-electromagnetic interference and softness, not only light weight, but also has the characteristics of high temperature resistance, moist
INQUIRY

Silver Copper PTFE FEP Teflon RG316 Coaxial Cable has good anti-electromagnetic interference and softness, not only light weight, but also has the characteristics of high temperature resistance, moisture resistance and corrosion resistance. The indicators such as shielding, attenuation and standing wave have excellent electrical properties. Coaxial Cable Widely used in communications, aviation, intelligent robots, military and other fields.

RG316 Coax Construction/RG316 同轴电缆结构					OD/直径 (mm)
Conductor/导体:	7/0.12 Silver-coated Copper Clad Steel (SCCS)/镀银铜包钢				0.51
Dielectric/绝缘体:	Extruded Solid Polytetrafluoroethylene (PTFE)/聚四氟乙烯				1.52
Shield/屏蔽层:	Silver Plated Copper (SPC)/镀银铜				1.95
Jacket/护套:	Extruded Fluorinated Ethylene Propylene (FEP)/聚全氟乙烯				2.50
RG 316 Cable Physical Characteristics/RG 316 电缆物理特性
Weight per/重量100m:			1.6kg
Minimum bend radius/最小弯曲半径:			15mm
Operating temperature range/工作温度范围:			－55℃ to +200℃
RoHS compliance/符合RoHS:			2011/65/EU (RoHS)
RG-316 Cable Electrical Characteristics/RG-316 电缆电气特性
Impedance/阻抗:		50		+/- 2 ohms
Capacitance/电容:		96.45		pF/m. max
Maximum voltage/最大电压:		1200		Volts
Velocity of propagation/速率:		70		%
Operating Frequency/工作频率:		3		GHz
Screening effectiveness/屏蔽效率		≥ 38		dB (up to 1 GHz)
Insulation resistance/绝缘电阻:		≥ 1 x 108		MΩm
Max. operating voltage/最大工作电压		≤ 0.85		kVrms (at sea level)
RG316 Attenuation/RG316 衰减:
Freq/频率(MHz)		Typical/典型值(dB/m)			Max. CW power/功率最大值
100		0.262			427
400		0.531			213
1000		0.856			135
3000		1.532			78
