Type G cable

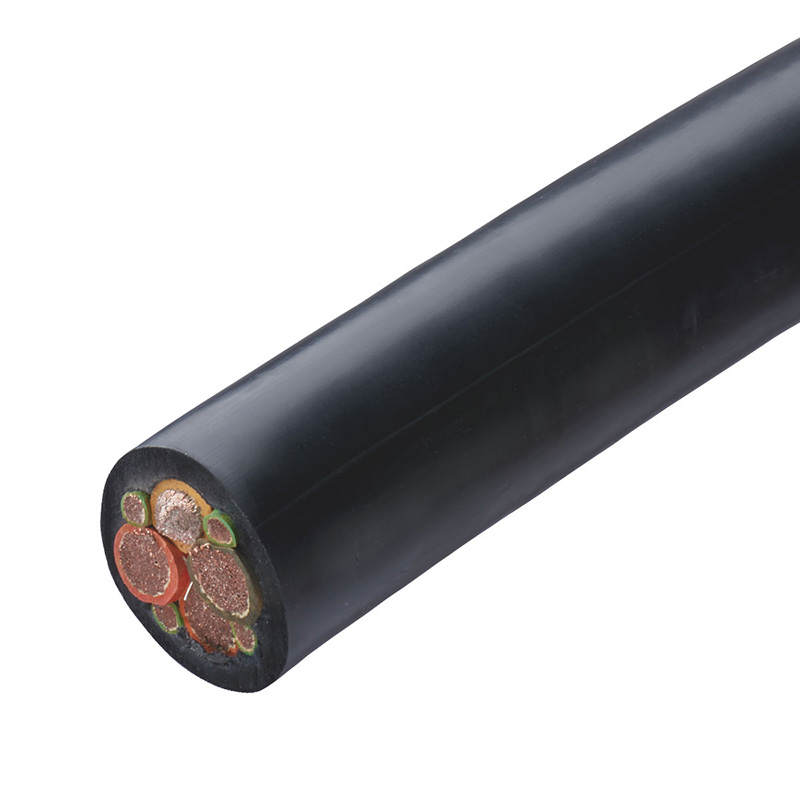

Type G cable
Product description: Type G cable|Type G power cable suitable for use in industrial and light- to medium-duty mining applications, heavy-duty service as power supply cable,often used for Mining equipment, cranes, conveyor
INQUIRY

Type G cable|Type G power cable suitable for use in industrial and light- to medium-duty mining applications, heavy-duty service as power supply cable,often used for Mining equipment, cranes, conveyors, and mobile equipment,Excellent impact resistance,Withstands severe environmental conditions,Resistant to heat, acids, oil, moisture, and most chemicals.Type G cable for mobile and portable electrical equipment at a continuous conductor temperature of 90°C.
Type G and Type G-GC cables have a fully annealed stranded bare copper conductor. The high strand count combined with EPDM insulation and CPE jacket makes these cables flexible at both high and low temperatures, with a rating of -40°C to 90°C. The CPE jacket also makes these cables heat, oil, weather, ozone, and abrasion-resistant. They are also suitable for submersion in water and are rated at 2000 volts，similar cable such as welding cable.
Type G cable|Type G power cable structure
Conductor:Fully annealed stranded bare copper, ropelay stranding for maximum flexibility
Insulation layer：EPDM for use up to 90°C

Jacketlayer: Heavy duty thermoset CPE

Type G cable|Type G power cable parameters

Gauge	Conductors	Stranding	Ground Gauge	Insulation Thickness	Outside Diameter Inches	Material Weight (Lbs./M')
8	4	133	4 # 12	0.06	1.045	690
6	4	259	4 # 12	0.06	1.125	880
4	4	259	4 # 10	0.06	1.225	1160
2	4	259	4 # 9	0.06	1.435	1720
1	4	259	4 # 8	0.06	1.595	2200
1/0	4	259	4 # 7	0.06	1.73	2705
2/0	4	259	4 # 6	0.08	1.855	3190
3/0	4	259	4 # 5	0.08	2.04	4005
4/0	4	259	4 # 4	0.08	2.145	4560
250	4	427	4 # 3	0.095	2.77	7143
350	4	888	4 # 2	0.095	3.1	6567
500	4	1235	4 # 1/0	0.095	3.4	10822
