Flexible cable ZR-KVVRP

Flexible cable ZR-KVVRP
Flexible cable
Product description: Flame-retardant PVC control cable, copper wire shielded flexible cable ZR-KVVRP is a copper core PVC insulated PVC sheathed braided shielded flexible control cable, laid indoors. It is suitable for oc
INQUIRY

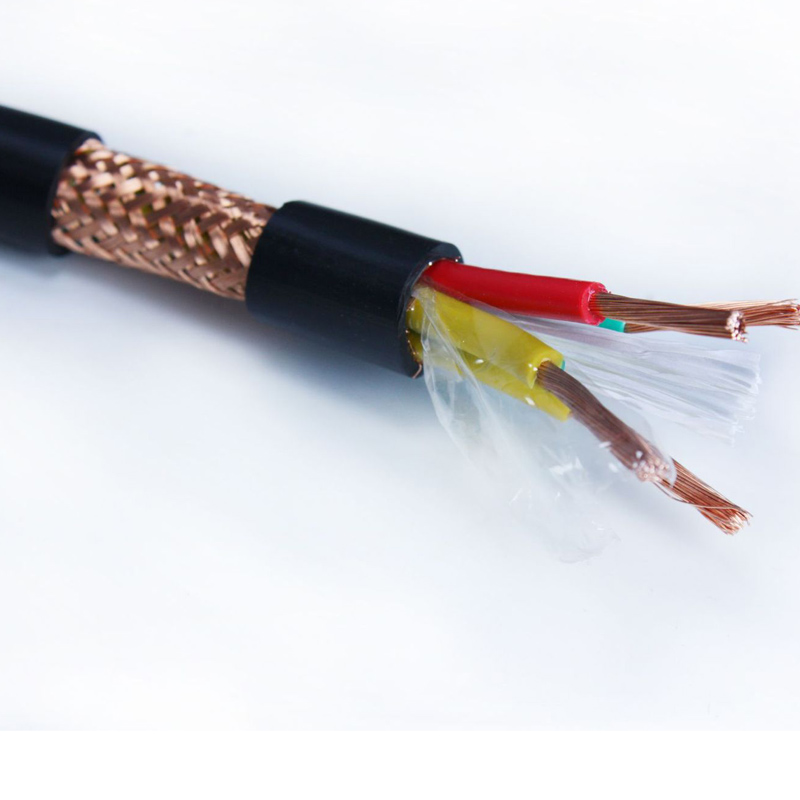

Flame-retardant PVC control cable, copper wire shielded flexible cable ZR-KVVRP is a copper core PVC insulated PVC sheathed braided shielded flexible control cable, laid indoors. It is suitable for occasions such as control and monitoring circuits and protection circuits for AC rated voltages of 450/750V and below, and places where mobile signal interference is required. The product complies with the GB/T9330-2008 standard. Because of its good shielding performance, the shielded control flexible cable is widely used in power plants and power stations. The cables are often laid in the city, cable trenches, pipelines, direct buried, shafts, etc., which can withstand greater mechanical tension. Fixed occasions.
The basic characteristics of the control cable:
Long-term allowable working temperature of conductor: 70℃ for polyethylene and 160℃ for cross-linked polyethylene.
Polyvinyl chloride insulated cables are 70°C, 90°C, and 105°C.
Low-smoke halogen-free flame-retardant polyolefin insulated cable is 70℃, 90℃
Allowable bending radius of cables: cables with armored or wrapped shielding structure should not be less than 12 times the outer diameter of the cable, and cables with other structures should not be less than 6 times the outer diameter of the cable.
Allowable laying temperature of cables: PE sheathed cables shall not be lower than 20℃.

PVC sheath and low-smoke halogen-free flame-retardant polyolefin cable: 0℃.

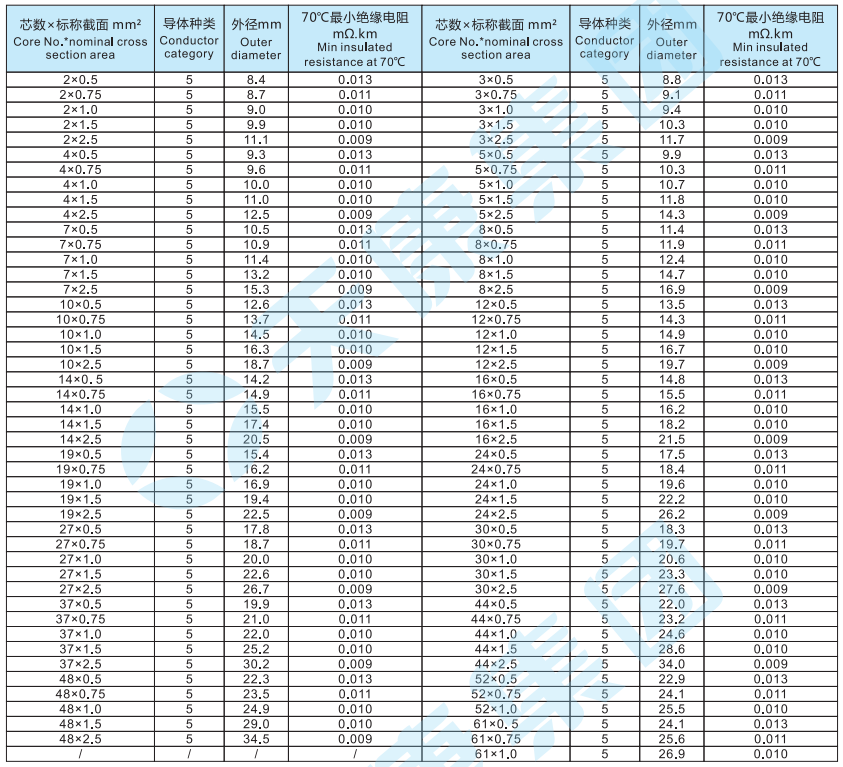

Flame-retardant PVC control cable,shielded flexible cable ZR-KVVRP specifications

Commonly used core wire diameters are: 0.5mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, etc., and larger specifications can be customized.
Flame-retardant PVC control cable, copper wire shielded flexible cable ZR-KVVRP, also known as electrical connection anti-interference flexible cable, rated voltage 450/750V, the number of cores commonly used is 2-24 cores, 61 cores can be achieved according to user requirements, KVVRP cable is a kind of cable with soft conductor PVC insulated wire plus shielding layer and PVC sheath,Flame-retardant PVC control cable, copper wire shielded flexible cable ZR-KVVRP.
