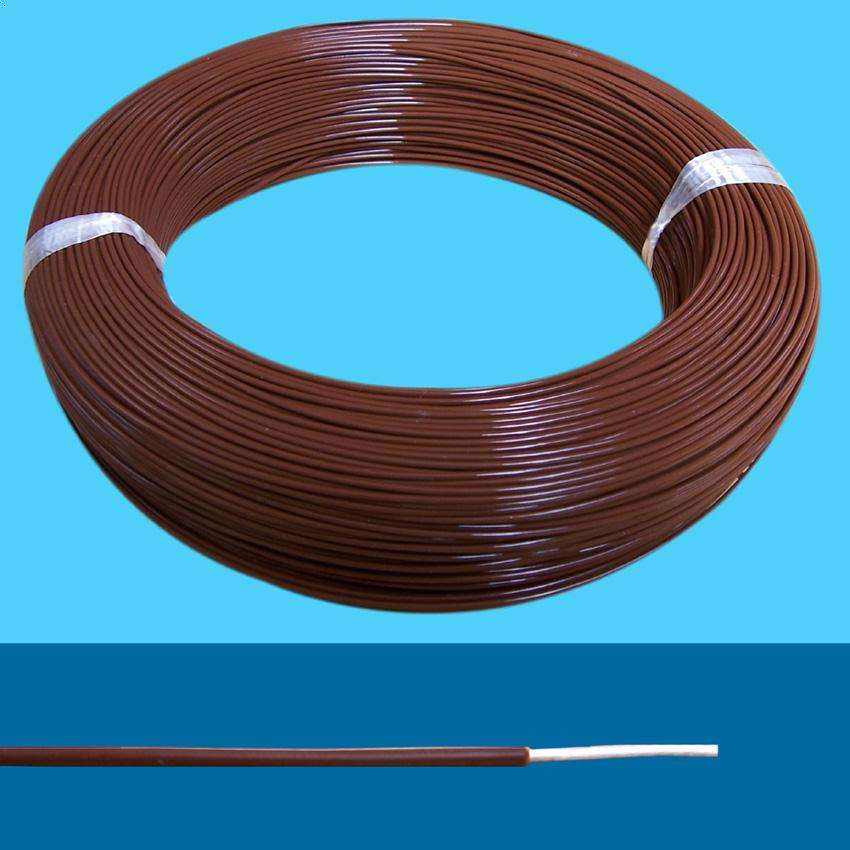

PEA insulated single core high temperature cable resistant to 250 ° C

PEA insulated single core high temperature cable
high temperature cable
Product description: PEA insulated single core high temperature cable resistant to 250 ° C has excellent corrosion resistance, oil resistance, strong acid resistance, strong alkali resistance, strong oxidant, etc. It has
INQUIRY

PEA insulated single core high temperature cable resistant to 250 ° C has excellent corrosion resistance, oil resistance, strong acid resistance, strong alkali resistance, strong oxidant, etc. It has excellent electrical insulation performance, high voltage resistance, low high frequency loss, no moisture absorption, high insulation resistance, excellent fire resistance, aging resistance and long service life.
PEA insulated single core high temperature cable resistant to 250 ° C characteristics:
1. Rated voltage: 600V
2. Working Temperature: -65~+200 C
3. Conductor: solid core or twisted tin-plated copper wire
4. Insulation: FEP Teflon
5. Color: red/yellow/blue/white/black/yellow/green/brown, etc.
PEA insulated single core high temperature cable resistant to 250 ° C Purpose:
high temperature cable can be used for temperature compensating wire, low temperature resistant wire, high temperature heating wire, aging resistant wire and flame retardant wire; in household electrical appliances industry, it can be used for internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, electric rice castle, electronic hot water bottle, electric heater, electric oven, electric frying pan, lamps and lanterns, etc.

PEA insulated single core high temperature cable resistant to 250 ° C Specification, structure and technical parameters:

Nominal cross section （mm²）	Conductor structure Number of roots / wire diameter（mm）	Insulation thickness （mm）	Average outer diameter （mm）	Conductor DC resistance at 20 °C （Ω/km）	Package length （m）
0.35	19/0.16	0.25	1.30	53.1	200
0.50	19/0.18	0.25	1.40	40.1	200
0.75	19/0.23	0.25	1.70	24.6	200
1.0	19/0.26	0.25	1.80	20.4	200
1.20	19/0.28	0.30	2.0	16.6	200
1.50	19/0.32	0.30	2.25	12.7	200
2.0	19/0.37	0.30	2.45	10.0	100
2.5	19/0.41	0.40	2.80	7.43	100
4.0	37/0.37	0.40	3.40	4.88	100
6.0	37/0.45	0.50	4.20	3.30	100
8.0	133/0.28	0.5	5.2	2.30	100
10	133/0.32	0.5	5.8	1.82	100
16	133/0.39	0.6	7.0	1.22	100
20	133/0.45	0.6	8.0	0.919	100
25	196/0.40	0.6	8.8	0.795	100
35	494/0.30	0.7	10.4	0.565	100
50	396/0.40	0.8	12.2	0.393	100
70	551/0.40	1.0	14.6	0.277	100
95	760/0.40	1.2	17.2	0.210	100
