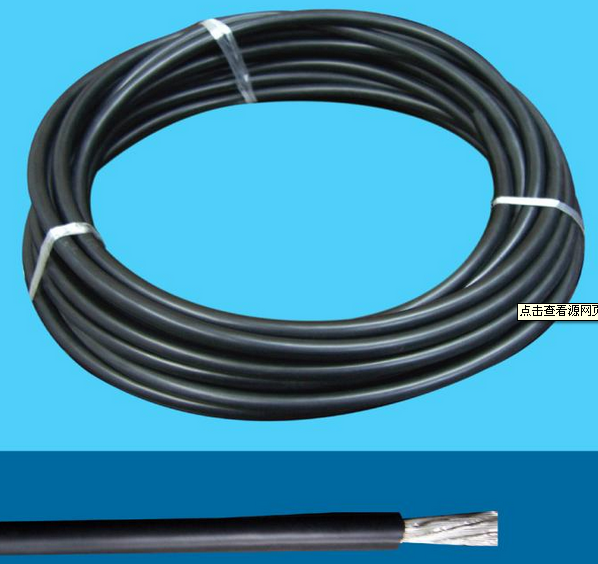

Silicone Rubber Insulated Single Core High Temperature Wire Lattice structure and technical parameters:
Wire gauge
Conductor structure
Root/Line Diameter(mm)
Insulation thickness
Mean Outside Diameter
DC Resistance of Conductor at 20 Temperature
Packaging length
16
7 × 0.50
0.39
2.28
14.6
305
17
32 × 0.20
0.39
2.12
18.3
305
18
7 × 0.40
0.39
1.98
23.2
305
20
7 × 0.32
0.39
1.74
36.7
305
22
7 × 0.26
0.39
1.56
59.4
610
24
7 × 0.20
0.39
1.38
94.2
610
26
7 × 0.16
0.39
1.26
150
610
28
7 × 0.12
0.39
1.14
239
610
30
7 × 0.10
0.39
1.08
381
610
(AWG)
(mm)
(mm)
(Ω/km)
(m)
